Toky TH Series

Toky TH Series Professional Temperature and Humidity Controller. A versatile controller that simultaneously manages both temperature and humidity in a single unit with a 4-way control output.

Key Features:
• Multi-Way Control: 4-way control output (Heating, Cooling, Humidifying, Dehumidifying).
• High Precision: Accuracy of humidity at ±2%RH and temperature at ±0.2°C.
• High Resolution: 4-digit display with 0.1°C / 0.1%RH resolution.
• Flexible Control Modes: PID control or ON/OFF logic.
• Advanced Connectivity: Modbus-RTU protocol via RS485 communication.

Back

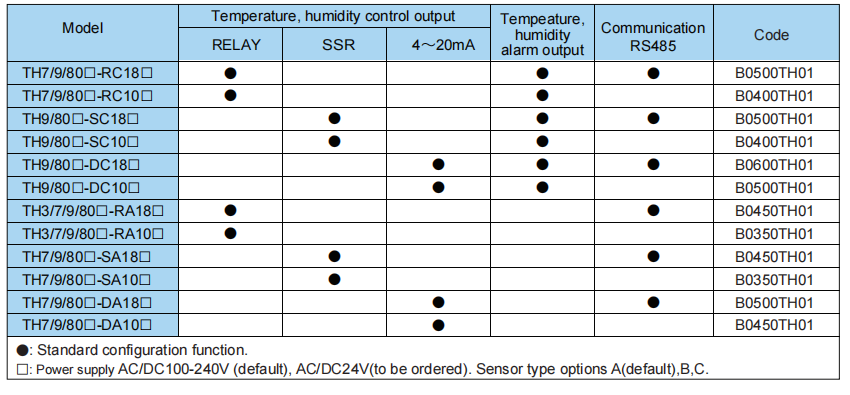

Technical Specifications
Accuracy Humidity: ±2% RH, Temperature: ±0.2°C
Output Configuration Relay, SSR, or DC 4~20mA Transmission
Control Engine Heating, Cooling, Humidifying, Dehumidifying (4-way Output)
Control Modes PID Control or ON/OFF Logic
Power Supply AC/DC 100~240V (Default) or AC/DC 24V (Custom)
Communication RS485 Modbus RTU
Sensor Installation High-precision digital sensor (Screw fitting, Rail mount, or Metal Shell)
Dimensions 72x36, 48x96, 72x72, 96x96, 160x80 mm
Product Information

This temperature controller from Toky is designed to meet rigorous industrial standards, providing precise, real-time temperature tracking and automated adjustments to maintain optimal operational conditions.

For more detailed wiring diagrams, panel cutout dimensions, and Modbus registers, please download the product manual from our Download section or contact our engineering team.
