Toky T710 Series

Toky T710 Series Flagship Smart Temperature Controller. Offers high flexibility for various industrial temperature control applications with 0.1% measurement accuracy and user-selectable plug-in modular design.

Key Features:
• High Accuracy: 0.1% basic measurement accuracy, up to 0.05% F.S. with high-performance ADC.
• Advanced Control: TPID differentiation prophet engine, fuzzy inference rules, fast auto-tuning, and dual PID (heating/cooling).
• Modular Design: Supports plug-in modules (Relay, SSR, Transistor, Current, Comm).
• Program Controls (B Series): Supports up to 999 program segments, 33 program curve groups, and 8 PID parameter sets.
• Robust Protection: AC380V miswiring protection and output protection.

Back

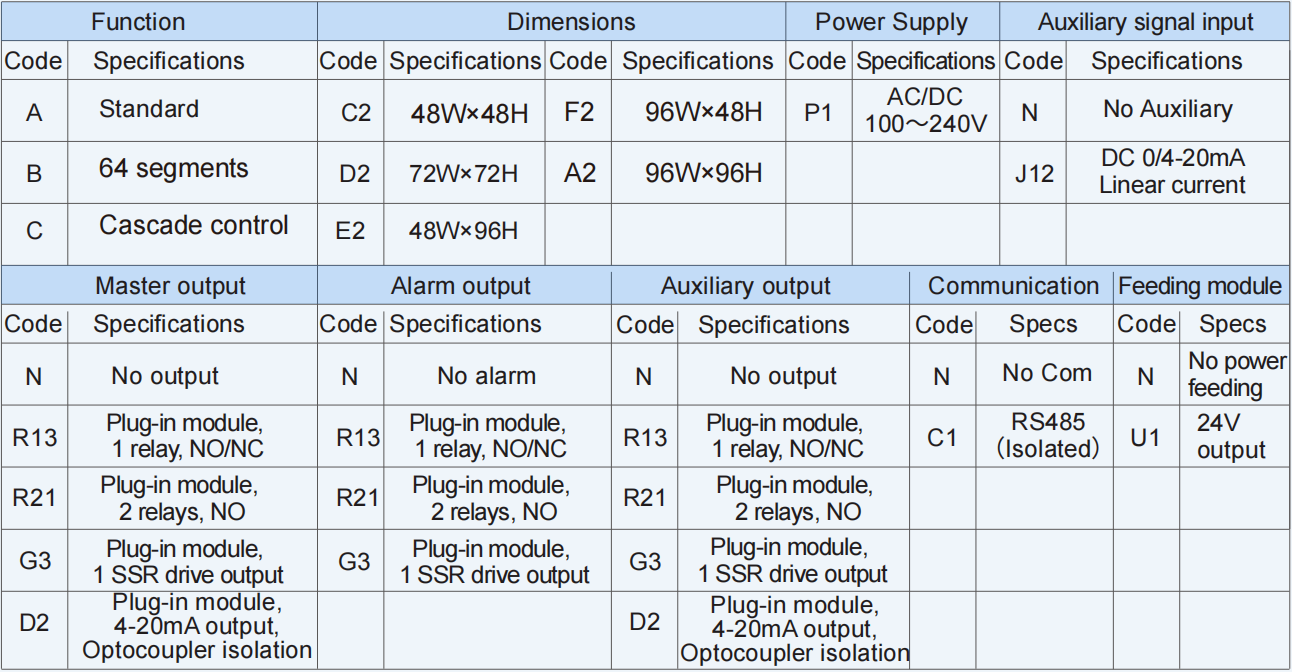

Technical Specifications
Accuracy 0.1% F.S. (Up to 0.05% F.S. with high-performance ADC)
Input Type TC (Thermocouple), RTD (Thermal Resistance), Analog (mA, V)
Control Output Relay, Solid State Relay (SSR), Transistor, Current Module
Control Algorithm TPID Differentiation Prophet Engine, Fast Auto-Tuning, Dual PID
Program Segment (B Series) Up to 999 segments, 33 program curves, 8 sets of PID
Communication RS485 (Supports multiple isolated communication modules)
Alarm & I/O Max 4 Alarms, Max 3 Transmission Outputs, Max 3 DI Events
Dimensions 48x48 (C2), 72x72 (D2), 48x96 (E2), 96x48 (F2), 96x96 (A2) mm
Power Supply AC/DC 100~240V (Energy-saving design)
Product Information

This temperature controller from Toky is designed to meet rigorous industrial standards, providing precise, real-time temperature tracking and automated adjustments to maintain optimal operational conditions.

For more detailed wiring diagrams, panel cutout dimensions, and Modbus registers, please download the product manual from our Download section or contact our engineering team.
