Toky T610 Series

Toky T610 Series Professional Smart Temperature Controller. Offers high flexibility for various industrial temperature control applications with 0.2% measurement accuracy and user-selectable plug-in modular design.

Key Features:
• High Accuracy: 0.2% basic measurement accuracy, up to 0.05% F.S. with high-performance ADC.
• Advanced Control: TPID differentiation prophet engine, fuzzy inference rules, fast auto-tuning, and dual PID (heating/cooling).
• Modular Design: Supports plug-in modules (Relay, SSR, Transistor, Current, Comm).
• Program Controls (B Series): Supports up to 999 program segments, 33 program curve groups, and 8 PID parameter sets.
• Robust Protection: AC380V miswiring protection and output protection.

Back

Technical Specifications

Accuracy	0.2% F.S. (Up to 0.05% F.S. with high-performance ADC)
Input Type	TC (Thermocouple), RTD (Thermal Resistance), Analog (mA, V)
Control Output	Relay, Solid State Relay (SSR), Transistor, Current Module
Control Algorithm	TPID Differentiation Prophet Engine, Fast Auto-Tuning, Dual PID
Program Segment (B Series)	Up to 999 segments, 33 program curves, 8 sets of PID
Communication	RS485 (Supports multiple isolated communication modules)
Alarm & I/O	Max 4 Alarms, Max 3 Transmission Outputs, Max 3 DI Events
Dimensions	72x72 (D2), 48x96 (E2), 96x48 (F2), 96x96 (A2) mm
Power Supply	AC/DC 100~240V (Energy-saving design)

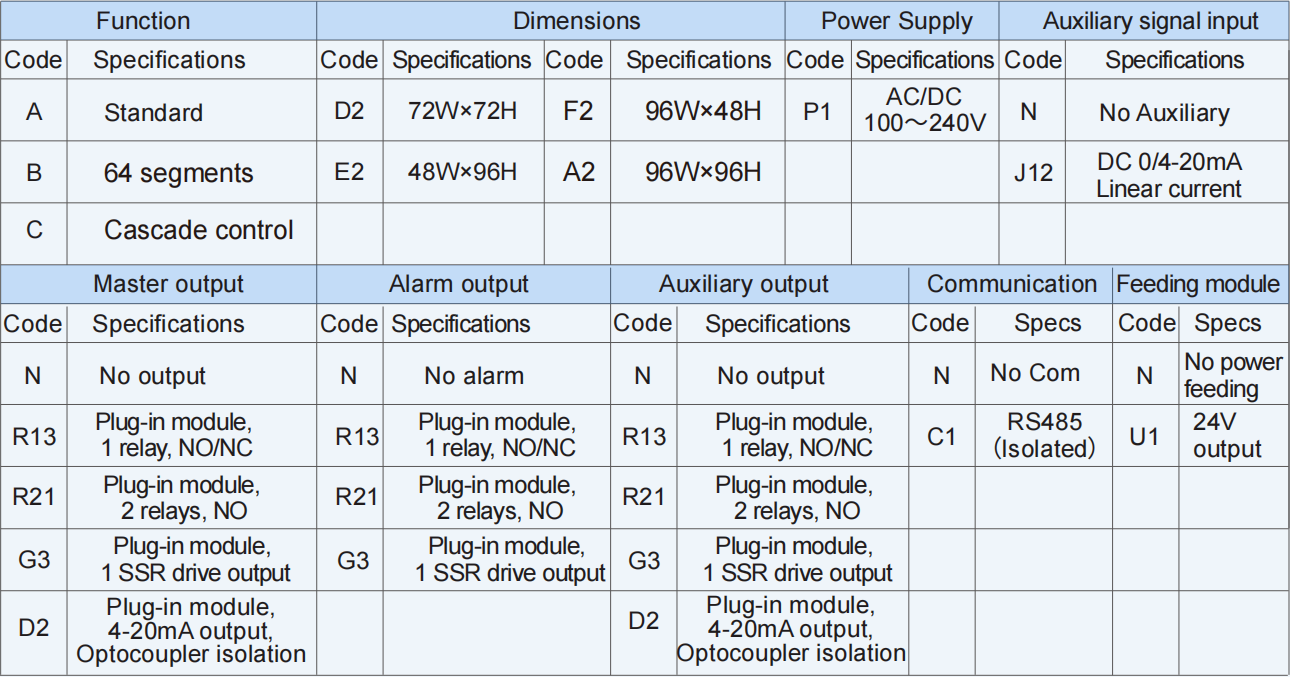

Technical Specification - Toky T610 Series
