Toky RNA Series

Toky RNA Series Single-phase AC output Solid State Relay. A high-performance switching solution featuring broad current ranges and optional integrated protections for industrial loads.

Key Features:
• Zero-crossing or random conduction switching options.
• Load current range: 15A - 125A @ 24-660V AC.
• Optional built-in MOV protection or TVS protection against voltage spikes.
• Universal DC or AC control inputs available.
• High dielectric strength of 4000V ACrms.
• Integrated LED status indicator for easy monitoring.

Back

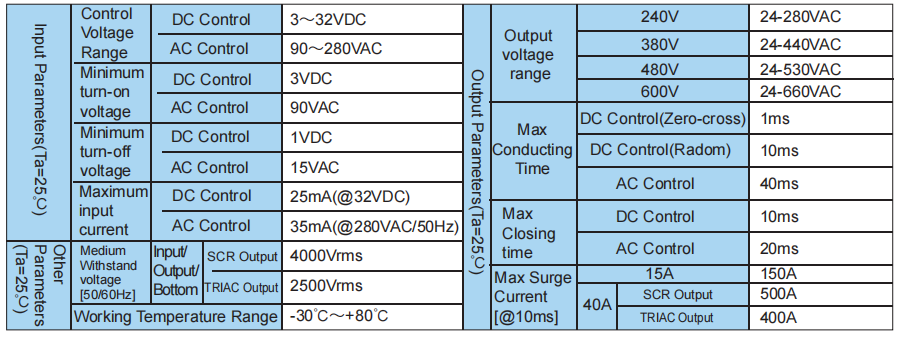

Technical Specifications
Output Type Single-phase AC
Switching Type Zero-crossing or Random Conduction
Load Rated Current 15A to 125A
Load Rated Voltage 24 - 660V AC
Dielectric Voltage 4000V ACrms
Protection Optional built-in MOV / TVS
Indicators LED Status Light
Product Information

The RNA series is engineered for high-power single-phase applications. Its robust electrical isolation and optional surge protection make it ideal for heating elements, motor controls, and high-duty cycle industrial processes.

For more detailed technical data Sheets and mounting tutorials, please refer to our Download center or contact Maxwell MIM technical support.
