Toky N320A Series

Toky N320A Modbus Protocol Converter. Converts between Modbus TCP and Modbus RTU for seamless integration.

Key Features:
• Protocol Converter: Modbus TCP to Modbus RTU translation.
• Cascade Friendly: Splicing assembly with Toky products.
• Master Support: Connect up to 36 slave devices concurrently.
• Data Reorganization: Customizable data polling blocks optimizing PLC logic.

Back

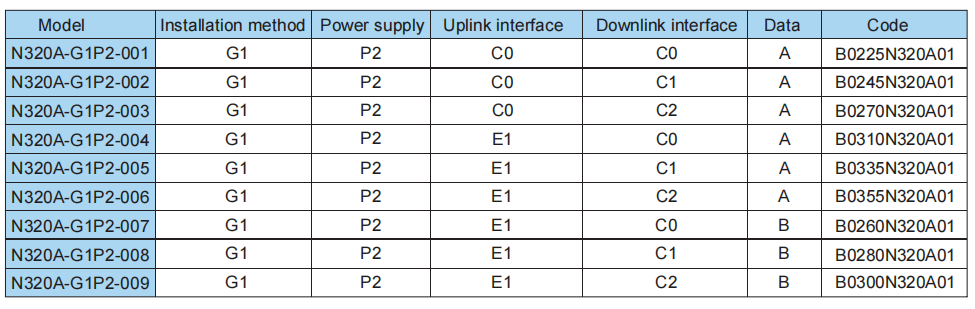

Technical Specifications

Interfaces	1 LAN (Uplink), 1 COM2 RS485 (Downlink)
Topology	Up to 36 RS485 slaves per converter
Power	DC24V or AC220V Optional
Feature	Built-in Modbus Master polling with memory mapping
Mounting	Standard DIN rail snap mount

Product Information

This module from Toky is engineered for strict industrial environments, guaranteeing precise monitoring and seamless automated tuning to preserve high-fidelity operation conditions.

For extensive wiring documentation, physical dimensional drawings, and advanced Modbus registers matrices, please acquire the user manual from our Download section or speak with our application engineers.
